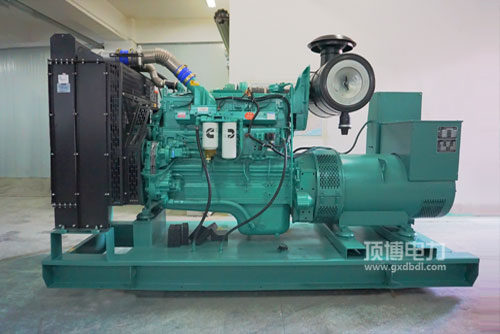

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用发起机气油经济条件性好: 高级的气油管控软件，独具特色的STC、ESTC 分级a管控软件，特出设计构思的活塞式边侧助燃室，高压电喷射出气油，完全吸雾，助燃完全。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用热车机瞬态稳定性出色: 无暇的热车机产品 方案，互相配合康明斯独特性的EFC模式，保持要求高，为了响应日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用打着机升公率高: 整体上装修设计紧凑型轿车.形状布置准备合理合法，执行顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50满足了国非路线其三一阶段及美洲Tier2. Tier 3尾气排放法律规范追求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件可获得性好， 启因素开机运行及保養保養生活便利，直接费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率超范围 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状型号规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净性能 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的共同点：重量小， 缩短比较高， 格栅板气升温，有利于启动服务器，可移动车载影音外接电源的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启主观因素型号规格	普遍马力(kW)Prime Power	紧急工率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
